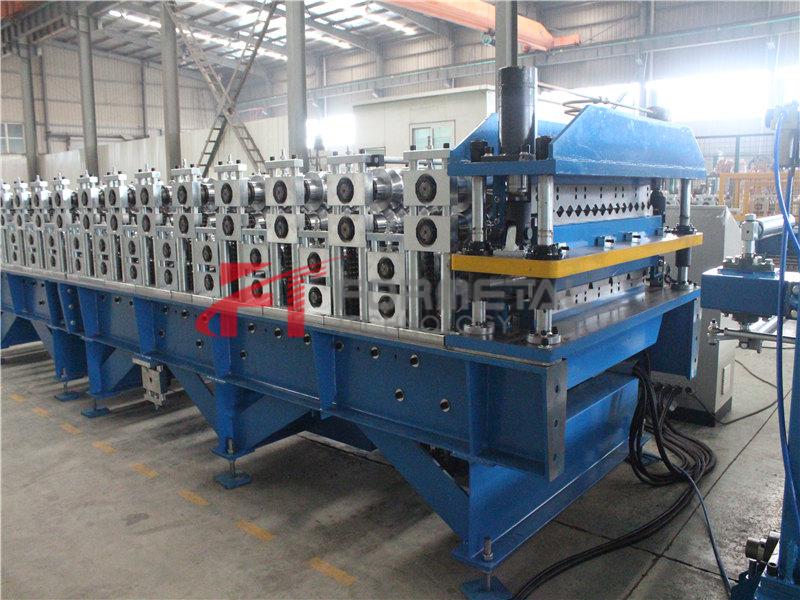

Double Layer Roll Forming Machine

Double Layer Roll Forming Machine is a machine who can produce two profiles in one machine. There are two layers in the machine, upper layer and lower layer and two layers cutter. One layer can work on one profile. Machine can work on one profile for one time. This machine is very welcome for the customer whose factory space is limited. Double Layer Roll Forming Machine can automatically uncoiling, pre-cutting, roll forming, post cutting and stacking.

The machine can be customized based on the customer’s specific technical requirements.

Advanced Double Layer Roll Forming System

1.  There are two lays of rollers in order to produce two kinds of panels. Operator can choose one of them easily.

2.  Machine frame adopts welding structure with shot blasting treatment. It’s sectionally jointed.

Automatic Post Cutting System

1.  The cutter can move up and down to cut the upper profile and lower profile.

2.  The cutting to length is controlled by the PLC and encoder.

Product application of Double Layer Roll Forming Machine

In order to satisfy various customer requirements, we design and manufacture Double Layer Roll Forming Machine in different specifications, models and configurations.

Packaging Details

1. One *40GP & One *20GP containers for loading one set of the machine.

2. The whole Wiped Anti Rust Oil, PLC controller covered by foam film;

3. Spare parts and some small parts packed in wooden box;

4. All Components Fixed by steel wire with Container. Suitable for long time sea shipping.
