3.0x1500mm Steel Coil Cut to Length Line

3.0x1500mm Steel Coil Cut to Length Line is for cutting the mother steel coil to be steel panels and then stack the steel panels. It can continuously run and has a high working efficiency.

We can especially design and manufacture the machine according to customers’ specific technical requirements.

Parameters of Coil:

1.      Suitable material：     hot rolled sheet, cold rolled sheet, stainless steel

2.      Yield stress：         σ_S≤355Mpa    σ_b≤680Mpa

3.      Coil thickness：    0.63～3.0mm(stainless steel 0.63-1.0mm)

4.      Coil width：          ≤1500mm

5.      Coil ID：                Φ550/Φ650

6.      Coil OD：               Φ800～Φ1600mm

7.      Coil weight：          ≤10T

Finished Product Parameters:

1.        Cut to length：          1000-6000mm

2.        Tolerance of length：      ≤±1/3000

3.        Diagonal tolerance：      ≤±1.5/3000

4.        Stack weight：≤5000kg，max. height of stacker: 450mm

Other Parameters:

1.       Leveling speed：     ≤60m/min；

2.       Power：             400V/50Hz, 3 phase, 5 wire

3.       Total Power：         120kw

4.       Main motor power：

           Decoiler motor               AC2.2kw

           Motor of 15 rollers Leveler     DC75kw

           Servo motor of 5 rollers leveler   AC11kw

           Steel plate shearer           AC7.5kw

5.      Production line space（Approx）： 30m*9m (Length X Width)

6.      Machine operation direction： From left to right (Facing to operation stage)

7.      Operator：   1 Technician ,2 usual workers

8.      Machine color： As per buyer’s requirement

Coil loading → Decoiling → Accurate leveling →Swing bridge(Loop)→Guiding →Leveling and Scaling → Cut to length →Stacking

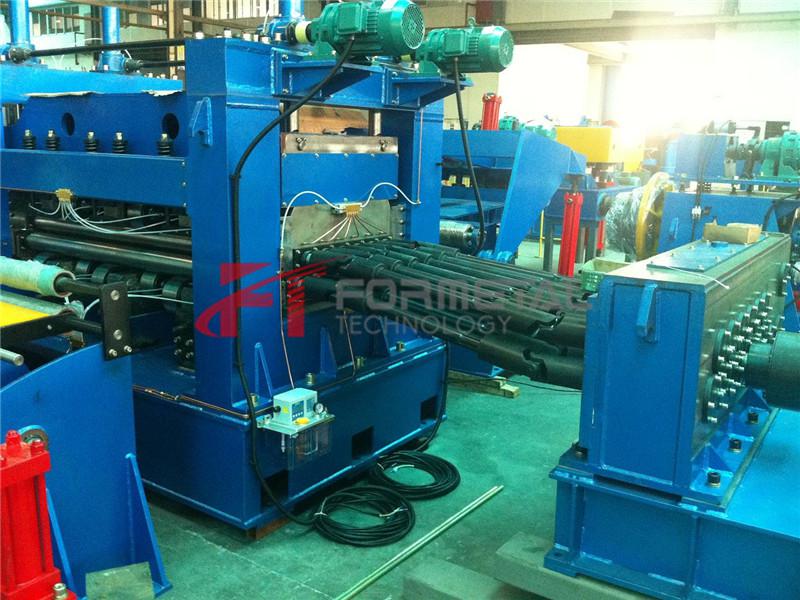

3.0x1500mm Steel Coil Cut to Length Line is mainly used to level the sheet and cut the sheet according to customer’s requirement and then stack the sheets. The detail components of this machine please refer to below.

Packaging Details

1. Three *40GP containers for loading one set of the machine.

2. The whole Wiped Anti Rust Oil, PLC controller covered by foam film;

3. Spare parts and some small parts packed in wooden box;

4. All Components Fixed by steel wire with Container. Suitable for long time sea shipping.
