Downspout Pipe Roll Forming Machine
Description
Reviews
European Standard Round Downspout Roll Forming Machine is for make round pipe downspout, which is used for the roofing system of house and It is a kind of very welcomed modern building material. It can continuously uncoiling, feeding, punching (cutting positioning), roll forming, and cutting to length. The whole line adopts PLC controlling system. It can run full automatically.
The machine can be customized as different customer is asking pipe with different diameters.
European Standard Round Downspout Roll Forming Machine can do the profile according to customer’s different requirements.

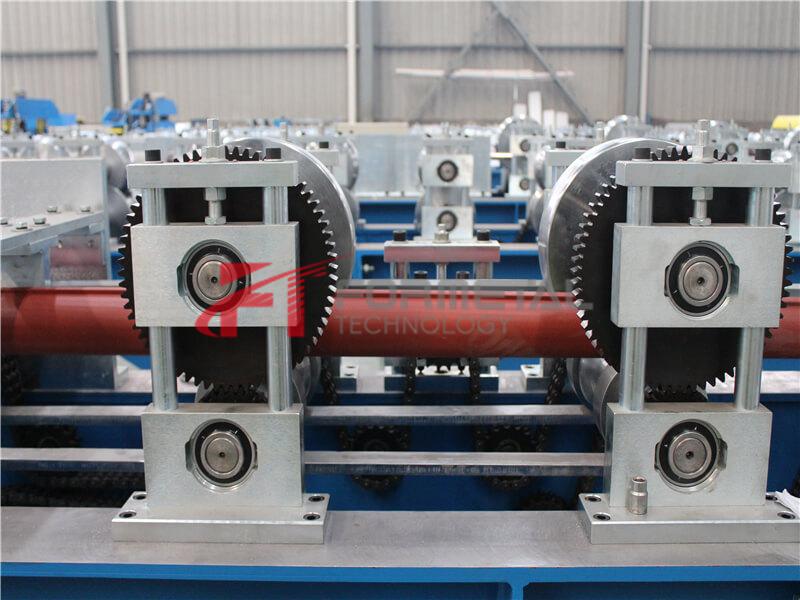

1)Machine frame: welding structure with blasting treatment
2)The roller is made by high quality no.45 steel with hard chrome-painted
3) Roller inner supporting structure type: guiding column
4) Planetary gear speed reducer motor driven, back/forward roller driven by chain, part of upper/lower rollers driven by gear.High Quality Cutting System

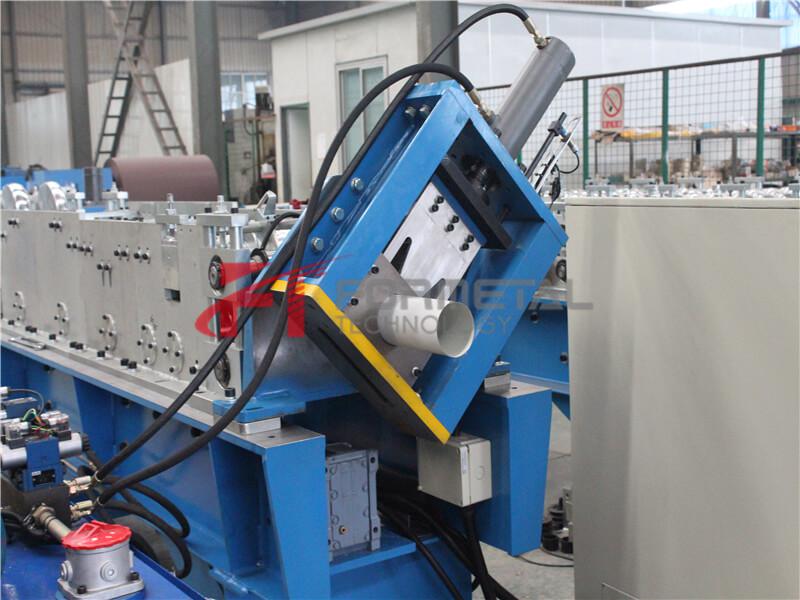

1) The cutting blade material is Cr12 with quenched treatment, there is no material wasted.
2) It adopts hydraulic cutting
Work flow
Decoiling → Punching (cutting positioning) → Roll forming → Cutting → Running outLayout drawing of European Standard Round Downspout Roll Forming Machine

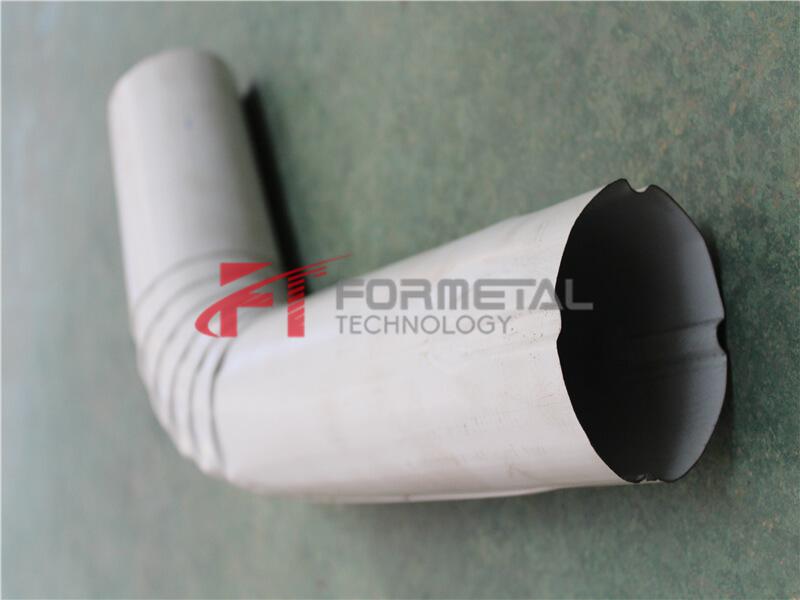

Product application of European Standard Round Downspout Roll Forming Machine
The Downspout profile is not fixed. Most of time, we are especially manufacturing the machines according to different customers’ technical requirements.
Packaging Details
1. One *40GP container for loading one set of the machine.
2. The whole Wiped Anti Rust Oil, PLC controller covered by foam film;
3.Spare parts and some small parts packed in wooden box;
4.All Components Fixed by steel wire with Container. Suitable for long time sea shipping.
